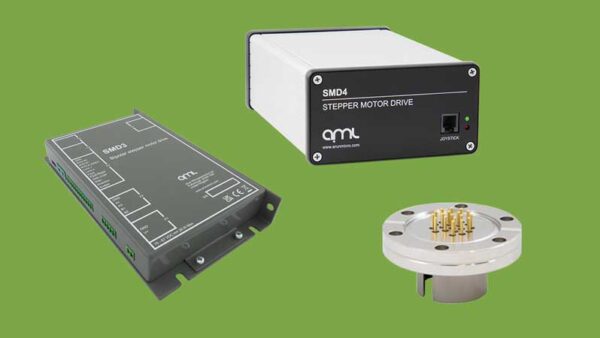

SMD3 Stepper Motor Controller

The M-SMD3 Stepper Motor Drive is a single-axis bipolar stepper motor driver that is engineered to drive vacuum-compatible stepper motors with maximum performance and minimal heat. It is optimised for use with AML UHV-compatible motors.
Powerful software is supplied with the M-SMD3 that enables you to control and configure multiple     M-SMD3 devices simultaneously, in a single user-friendly graphical interface.

Features:

• Single-channel UHV stepper motor drive optimised for vacuum use, ideally suited for use with our range of UHV stepper motorsAdvanced low-power drive techniques for minimum motor temperature rise and outgassing and maximum operating time.
• Advanced low-power drive techniques for minimum motor temperature rise, minimum outgassing and maximum operating time
• Holding torque can be controlled independently of dynamic torque under program control, to reduce power.
• Full-step and up to 256x micro-step resolution, with user-configurable transition from micro step to full-step mode (stops on full-step positions only; micro-stepping used for control of resonance and smoother step transition).
• Continuous monitoring of motor temperature with automatic shutdown if motor temperature exceeds tolerable levels.
• Current adjustable from 0 A to 1 A RMS in approx. 30 mA steps.
• 2 x configurable limit inputs.
• Opto-coupled step, direction and enable interface.
• Control via USB.
• Comprehensive configuration and control software supplied, or interface to your own application. C# API is available.

SMD4 Stepper Motor Controller

The SMD4 is a single-axis bipolar stepper motor drive that is engineered to drive vacuum-compatible stepper motors with maximum performance and minimal heat.

Features:

• Single-channel UHV stepper motor driver, ideally suited for use with our range of UHV stepper motors.
• Minimise temperature rise and outgassing with advanced drive current profiles.
• Monitor motor temperature using the thermocouple or RTD inputs. Drive current is removed if temperature exceeds safe levels.
• Power using a standard 48 Vdc power supply,and the drive voltage is boosted to 67 Vdc to maximise speed and torque. Power supply included.
• Up to 256x micro-step resolution minimises resonances, providing smooth motion.
• Current adjustable from 0 A to 1 A RMS in 30 mA steps, with dynamic set-points for acceleration, running and hold currents.



Product CodeDescriptionPriceQuantityPDF & STP
M-SMD3 SINGLE AXIS BIPOLAR STEPPER MOTOR DRIVER £ 631
M-SMD3JOY TWO BUTTON JOYSTICK FOR SMD3 £ 78
    M-SPSU48V 48VDC, 60WATT POWER SUPPLY £ 89
      M-MLF18SMD3 NON BAKEABLE LEAD, 3m M-MLF18F TO M-SMD3 £ 265
        M-MLF18SMD3-B BAKEABLE LEAD, 3m M-MLF18F TO M-SMD3 P.O.A
          M-SMD4 SINGLE AXIS BIPOLAR STEPPER MOTOR DRIVER £ 1,041
          M-SMD4-E SINGLE AXIS BIPOLAR STEPPER MOTOR DRIVER WITH ENCODER MODULE £ 1,248
          M-CAB-D15D9 SMD4 CABLE, 3m LONG D-SUB 15 MALE TO D-SUB 9 FEMALE £ 285
            M-CAB-D15MLF SMD4 CABLE, 3m LONG D-SUB 15 MALE TO MLF18 £ 250
              M-CAB-3D15MLF SMD4 CABLE, 3m LONG 3X D-SUB 15 MALE TO MLF18 £ 341
                M-MLF18F ELECTRICAL 18 WAY FEEDTHROUGH ON DN40CF £ 355
                M-MLF18AC AIR SIDE BAKEABLE CONNECTOR 18 WAY £ 174
                M-MLF18VCF IN VACUUM BAKEABLE CONNECTOR 18 WAY FEMALE £ 84
                M-MLF18VCM IN VACUUM BAKEABLE CONNECTOR 18 WAY MALE £ 84
                M-MLF18SKT M-MLF18AC/VCF SPARE SOCKETS - 20/PK £ 22
                  M-MLF18PIN M-MLF18AC/VCM SPARE PINS - 20/PK £ 18
                    M-MLF-XCR24 CRIMP TOOL FOR M-MLF18 CONNECTORS £ 69
                      M-MLF-XPX24 PIN EXTRACTION TOOL FOR M-MLF18 CONNECTORS £ 31
