Fused Silica Viewports – UV Grade
Fused silica viewports offer increased transmission of UV and IR wavelengths. We offer fused silica viewports in three grades; UV grade with window material HPFS® fused silica standard grade, DUV grade with window material HPFS® fused silica KrF grade, and Excimer UV with window material HPFS® fused silica ArF grade. We also offer a range of anti-reflection coated fused silica viewports which have an anti-reflective coating applied to both sides of the vacuum window, achieving maximised transmission for various laser types.
Features:
• UHV compatible.
• Synthetic fused silica
• Weldable versions available.
Specifications:
Materials
Window : Corning HPFS® 7980 fused silica
Carrier : St.St.
Flanges : St.St.
Max. Bakeout Temperature* :
CF flanged viewports : 200°C
KF flanged viewports : 150°C
Weldable viewports : 200°C
Max. Thermal Gradient : 25°C per minute
Optical properties
Surface finish : 40/20 scratch/dig
UV transmission @ 250nm (external) : >90%
parallelism : <30 arc minutes
Homogeneity grade : F
Inclusion class : 2
___________________________________________
* – Assembly rating is reduced to that of the lowest rated component.
Anti-Reflective Coating :- Anti-reflective coatings are available, please call our sales office to discuss your specific requirements.
Product Code | Fig. | Flange | A | B | C | D | E | F | Price | Quantity | PDF & STP | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
FSVP-UV-16CF | 1 | DN16CF | 16.0 | 2.5 | 4.3 | 7.4 | - | - | £183 | |||
FSVP-UV-40CF | 1 | DN40CF | 35.5 | 3.2 | 8.9 | 12.7 | - | - | £203 | |||
FSVP-UV-50CF | 1 | DN50CF | 35.5 | 3.2 | 8.9 | 12.7 | - | - | £223 | |||
FSVP-UV-63CF | 1 | DN63CF | 68.3 | 6.4 | 10.4 | 17.3 | - | - | £659 | |||
FSVP-UV-75CF | 1 | DND75CF | 68.3 | 6.4 | 10.4 | 19.1 | - | - | £675 | |||
FSVP-UV-100CF | 1 | DN100CF | 98.5 | 6.4 | 13.0 | 19.8 | - | - | £811 | |||
FSVP-UV-1254CF | 1 | DN125CF | 98.5 | 6.4 | 13.0 | 21.3 | - | - | £862 | |||
FSVP-UV-160CF | 1 | DN160CF | 136.6 | 9.4 | 12.2 | 22.4 | - | - | £1,976 | |||
FSVP-UV-200CF | 1 | DN200CF | 197.6 | 9.4 | 13.5 | 24.6 | - | - | £2,533 | |||
FSVP-UV-25KF | 2 | DN25KF | 16.0 | 2.2 | 6.4 | 10.0 | - | - | £209 | |||
FSVP-UV-40KF | 2 | DN40KF | 35.5 | 3.2 | 10.1 | 14.0 | - | - | £209 | |||
FSVP-UV-50KF | 2 | DN50KF | 35.5 | 3.2 | 10.1 | 16.0 | - | - | £254 | |||
FSVP-UV-63LF | 3 | DN63LF | 68.3 | 6.4 | 14.6 | 11.9 | 21.1 | - | £656 | |||
FSVP-UV-100LF-68 | 3 | DN100LF | 68.3 | 6.4 | 9.2 | 11.9 | 15.7 | - | £714 | |||
FSVP-UV-100LF | 3 | DN100LF | 98.5 | 6.4 | 18.2 | 11.9 | 24.6 | - | £927 | |||
FSVP-UV-160LF-98 | 3 | DN160LF | 98.5 | 6.4 | 11.8 | 11.9 | 18.3 | - | P.O.A | |||
FSVP-UV-160LF | 3 | DN160LF | 136.6 | 9.4 | 10.1 | 11.9 | 19.8 | - | £2,335 | |||
FSVP-UV-200LF-136 | 3 | DN200LF | 136.6 | 9.4 | 10.1 | 11.9 | 19.8 | - | £2,480 | |||
FSVP-UV-200LF | 3 | DN200LF | 197.6 | 9.4 | 12.4 | 11.9 | 21.8 | - | P.O.A | |||
FSVP-UV-250LF | 3 | DN250LF | 197.6 | 9.4 | 12.4 | 11.9 | 21.8 | - | £3,299 | |||

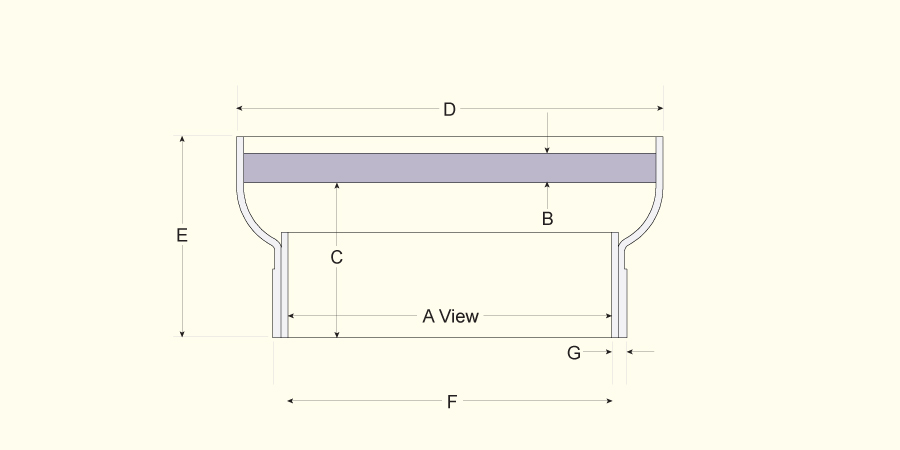

FSVP-UV-34.8-W | 4 | WELD | 34.8 | 3.2 | 17.3 | 44.7 | 21.6 | 38.1 | £244 | |||
FSVP-UV-60.2-W | 4 | WELD | 60.2 | 6.4 | 20.1 | 73.2 | 27.9 | 63.5 | £634 |
